S75/S100 Steel Shutter
Heavy-duty steel solution for industrial and commercial security
Built for durability and ease of use, the Sprint S75 and S100 Steel Shutters are roll-formed shutters designed for demanding environments. Both models deliver reliable security, flexible operation, and consistent performance across a wide range of applications.
Key Features
Wind Rated
Secure
Heavy Duty
Low Maintenance
Manual or Motorised
Specifications Summary
| Feature | S75 | S100 |
|---|---|---|
| Slat Size | 75mm roll-formed slat | 100mm roll-formed slat |
| Slat Thickness | 0.8mm, 1.0mm | 0.8mm, 1.0mm |
| Max Width | Up to 8,000 mm (8 m) | Up to 11,700 mm (11.7 m) |
| Finish | Galvanised or powder coat | Galvanised or powder coat |

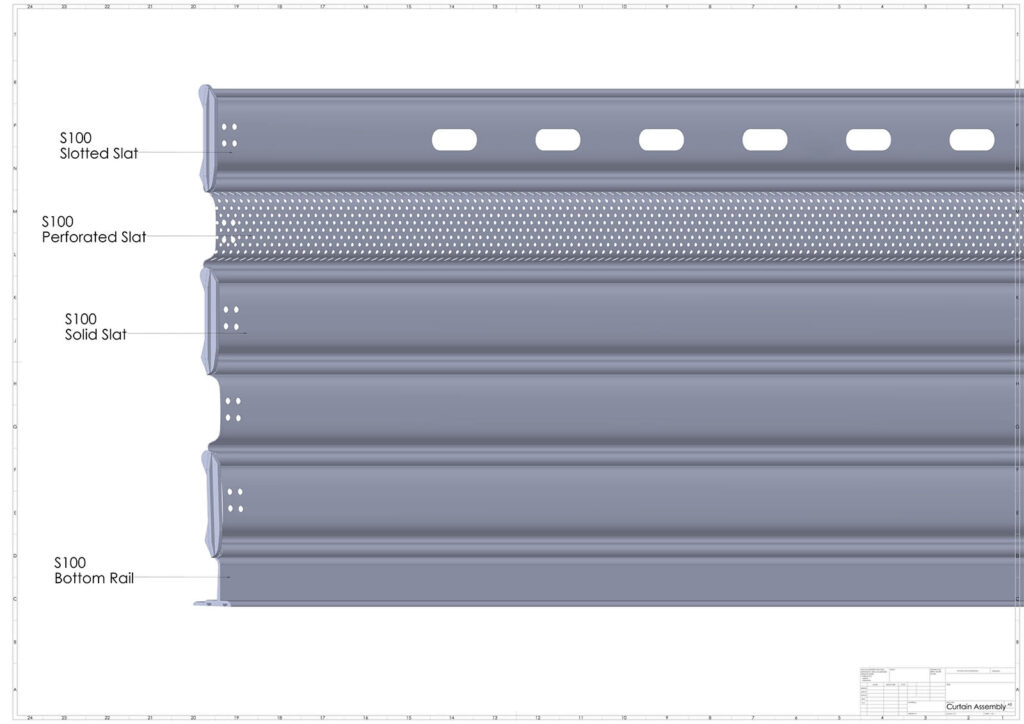

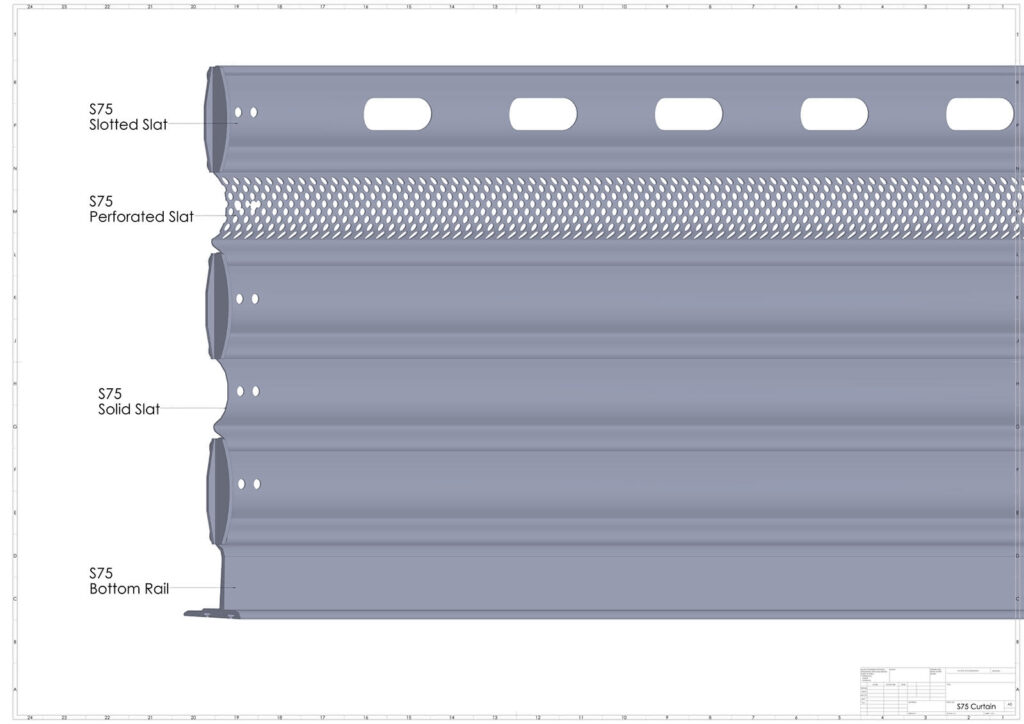

| Ventilation | Optional multi-hole or slotting for airflow | Optional multi-hole or slotting for airflow |
| Guides | 75mm, 100mm, Windlocked Guides | 75mm, 100mm, Windlocked Guides |
| Operation | Options for smaller shutters include; Hand operated, Hoist, motorized. – Motorized is only option for larger shutters | Options for smaller shutters include; Hand operated, Hoist, motorized. – Motorized is only option for larger shutters |
| Bottom Rail | Aluminium or steel box bottom rail, included weather seal | Aluminium or steel box bottom rail, included weather seal |
| Applications | Retail, commercial, light industrial sites | Warehouses, factories, heavy-duty industrial sites |
Additional notes
- Curtain: Roll formed from Bluescope Z275 galvanised steel
- Drum: C350 line pipe with cold-drawn 1020 solid bar axles on sealed roller bearings. Includes Australian-made helical springs for sprung doors
- Operation: Options include Grifco manual hoist or motors. Available in 240V or 3ph. Hand operation also available for smaller doors (<5m2)
- Finishes: Supplied in galvanised (silver) or Dulux powder coat finishes. Coating applied to both sides of slats as standard for superior protection and colour consistency
- Weight: Approx. 11.7kg/m2 (75/0.8mm) or 15.2g/m2 (75/1.0mm), not including drum or motor
